Description
ES Screw Conveyor Feeders Are Very Popular In The World!
In over four decades, the ES-type Screw Conveyor has become a synonym for cement feeding and conveying in concrete batching plants all over the world. In this period WAM supplied more than half a million units. Today it is hardly possible to find a batching plant manufacturer anywhere in the world who would not appreciate the unrivaled technical features and quality of the ES.

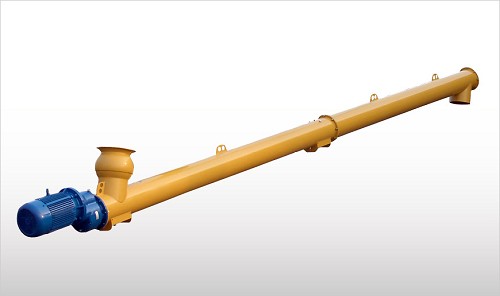

ES Screw Conveyor Introduction
ES Screw Conveyors and Feeders are manufactured from carbon steel with a suitable surface finishing and powder coating. They are made up of a tubular trough equipped with at least one inlet and outlet spout, a welded flange at each tube end, helicoid screw flighting welded on a center pipe with coupling bush at each end, two end bearing assemblies complete with self-adjusting shaft seal (one of the bearing assemblies is integrated into the drive unit), and a number of intermediate hanger bearings depending on the overall length. ES Screw Conveyors and Feeders are equipped with a gear motor that suits the application.
ES Screw Conveyor Application
ES Screw Conveyors and Feeders are used for conveying or feeding cement and materials similar to cement mainly in concrete batching plants but also in other building materials processing plants.
ES Screw Conveyor Features
1. Powder-coated
2. Outside tube complete with welded end flanges, one inlet, one outlet, inspection hatch beneath the first inlet and beneath each intermediate hanger bearing
3. Helicoid screw flighting welded on the center pipe
4. End bearing assemblies complete with self-adjusting shaft seal
5. Splined shaft couplings
6. Lifting eyelets on each tube section
7. Standard flange-mounted electric motor
8. Maintenance-free aluminum-cast intermediate hanger bearings with self-lubricating slide bushes
ES Screw Conveyor Benefits
Durable
Maintenance-free
Quick installation due to the universal inlet and outlet spouts
Optimum price-performance ratio
We are devoted to providing reliable equipment to medium and large-sized construction companies, contractors, and concrete ad building materials companies. More than 20 years of manufacturing experience let us become a top supplier in China, quality is similar to SANY, but the price is more reasonable. We are willing to grow up with you and promote world economic development. Our products series include:
1. WAM screw conveyor,
2. SICOMA concrete mixer,
3. Bolted cement silo,
4. Concrete batching plant,
5. Stabilized soil cement mixing plant,
6. Asphalt concrete mixing plant,
7. Other machines.
The customer is the focus of everything we do. We emphasize product quality, as well as personal customer service, providing reliable on-time delivery that helps our customers keep competitive. GREENCON is your reliable partner, a reliable partner is crucial to your success!
Contact us now!
