Description
Concrete trailer pump is also called as concrete pump, which is a mechanical machine that is used to convey and pour concrete at construction sites. Trailer pumps have the characteristics of long conveying distance, high productivity, and high transporting speed, which made it more and more welcomed among construction projects.
Generally speaking, concrete trailer pumps are divided into diesel and electric concrete pump trailer by its original motivation. Let's talk about diesel concrete pump in below.
|

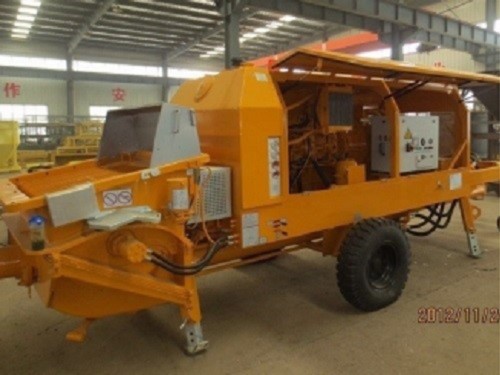

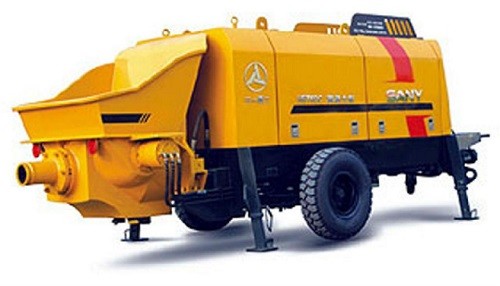

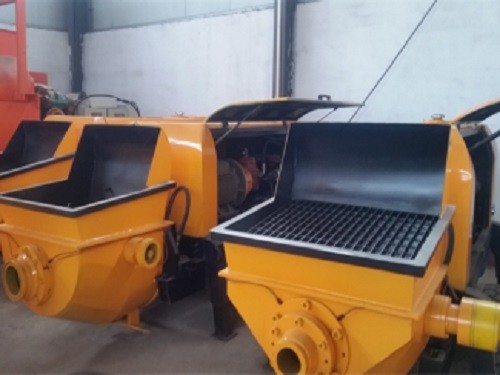

Diesel Concrete Pump |
|||
|
Model |
HBTS40-13-74R |
HBTS60-13-130R |
HBTS80-13-145R |
|
Theoretical capacity |
40m3/h (100ton) |
75/46m3/h |
84/50m3/h |
|
Conveying pressure |
7-13Mpa |
7-13Mpa |
7-13Mpa |
|
High and low voltage switching |
Include |
Include |
Include |
|
Aggregate size |
≤40mm |
≤50mm |
≤50mm |
|
Power |
Diesel engine 74 |
Diesel engine 130 |
Diesel engine 145 |
|
Speed |
2300r/min |
2300r/min |
2300r/min |
|
Conveying cylinder diameter |
Ø 100/1000 |
Ø125/1600 |
Ø125/1600 |
|
Concrete cylinder diameter |
Ø 180/1000 |
Ø 200/1600 |
Ø 200/1600 |
|
Oil tank volume |
240L |
500L+240L |
500L+240L |
|
Hopper volume |
0.35m3 |
0.8m3 |
0.8m3 |
|
Loading height |
1250mm |
1400mm |
1400mm |
|
Conveying distance vertical/horizontal |
150/700m |
270/1200 |
270/1200 |
|
Pipe cleaning mode |
Washing |
Washing |
Washing |
|
Dimensions |
5*2.1*2.2m |
6*2.1*22.6m |
6*2.1*22.6m |
|
Weight |
4500kg |
6200kg |
6200kg |
|
Remarks: Weichai Diesel engine, Germany Rexroth hydraulic oil pump, PLC electronic control, Schneider Electrical components, Automatic trouble monitoring function. |
|||
|
40m3/h Capacity Concrete Pump FOB Qingdao USD 23,900 |
|||
|
Payment: By T/T, 30% paid as deposit, balance 70% paid before delivery. Delivery: 20 days after received deposit. Loading port: 1X20’GP container, at Qingdao port. Term of validity: 1 month. Warranty:15 months. |
|||
